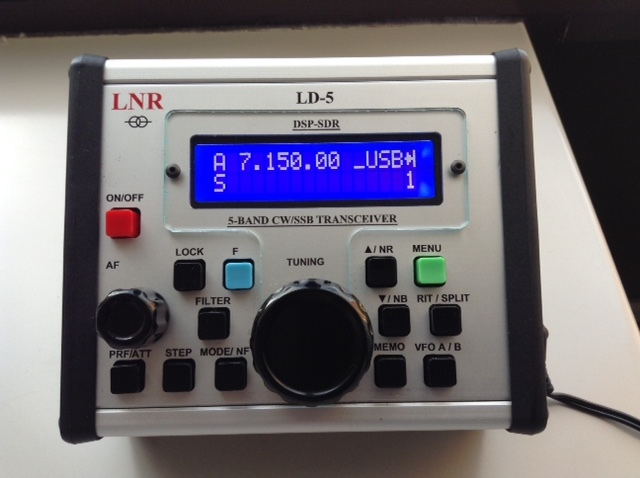

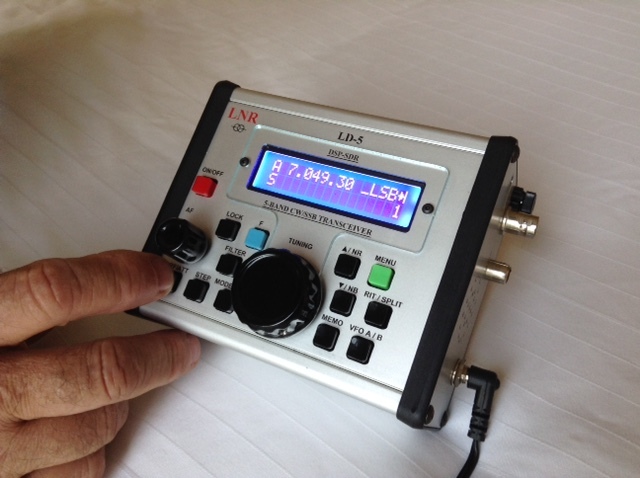

LD-5 Transceiver


(now includes FTDI Chipset)

AVAILABLE NOW !!



One of the hottest new QRP Transceivers on the market. This powerful unit packs in a ton of features at an incredible value. This rig has a sleek design with a simple interface that you will want with you at all times. The new LD-5 also includes the updated FTDI chipset which replaces the legacy Prolific chipset. Just wait until you hear the amazing receive!

Transmitter

Input Power: 10.5-13.8 VDC
Output Power: 3.5 – 8W
Measurement: SWR and Power:Numbers or Bar indicators on display
Supply Voltage:Real voltage on display
Two Modes CW: Select Straight Key or Paddle

Receiver

Receive sensitivity: 0.2uV Preamp
Ant Preamp: +12 dB
Spurious Response Rejection: IMD3 -48Db/ 5W
IMD5 -43dB
ATT: -6db

Specifications:

Frequency Range: 7000 kHz – 22 MHz 40, 30, 20, 17 and 15 meter operation
Modes: USB, LSB, CW, CW-R, DIGITAL DATA:CAT –USB jack : CW, PSK, RTTY, SSTV – 3.5mm jack
Power: 5W output in CW / SSB
Frequency Stability: +/- 3 ppm (Si570 defined) typical over 0-50 deg C
Supply Voltage: 10.5V min to 15V max 350mA receive and 1.5 to 2A typical in transmit
LO temp. Stability: +/- 2.5
Antenna: 50 ohms BNC
Dual VFO
Memory: 100 memory storage per band Memorize frequency, mode, VFO’s
Built-in speaker: 0.2 watts
Dimensions: 4.724”L X 3.937”W x 1.957“H
Weight: 19oz/0.54k/excl. mic.
Iambic key: Mode A and Mode B
Pitch CW: Controls CW offset. The sidetone pitch is automatically set to equal the offset
Notch Filter: Automatic Heterodyne filter for SSB from -6 to -40 db
Noise reduction: Level of attenuation of the noise from 1 to 50- use minimal necessary
Noise Blanker: Adjusted in the range from value 4 to 12 readings depending on interference
CW VOX: Break in delay in CW – adjustable from 0.1 seconds to 5 seconds
CW memory keyer Choose Iambic Mode A or B
VOICE VOX VOX Delay adjustable from 0.1 seconds to 5 seconds
SSB VOX Level: VOX GAIN 10-100 10 IS MOST SENSITIVE
8 Different filters (incl): 4 of 4 for CW/ SSB - 1-3 factory presets – No.4 adjustable for CW/50-1000Hz/ and SSB/250-3.6KHz
Compressor SSB: 0-20dB
SSB TX MUTE Enable= no monitor Disable= monitor

1 Year Factory Warranty



$594.99 In stock
Brand:LNR Precision
